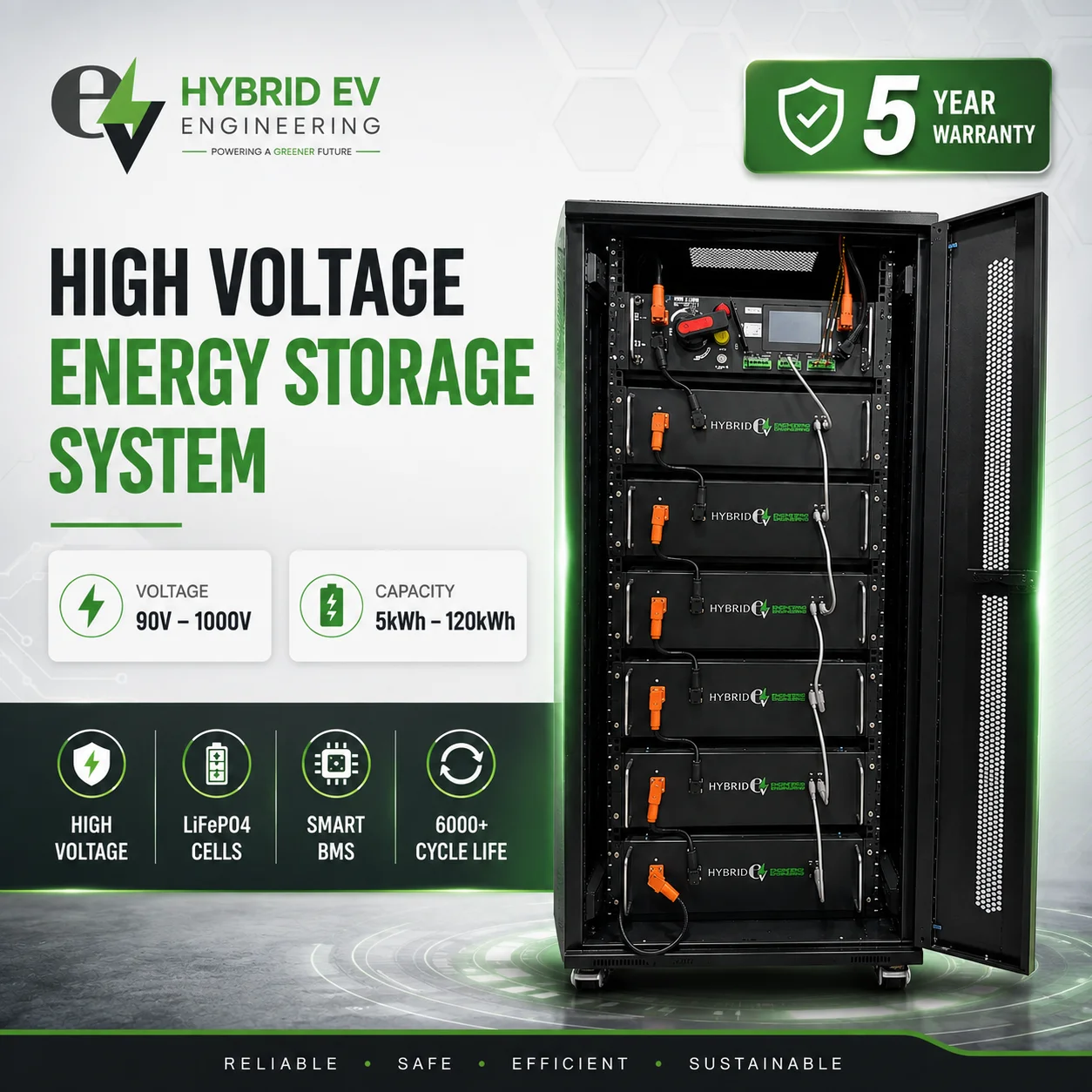

Our Industrial High Voltage Battery is a built-to-order LiFePO4 or NMC pack for machinery, traction and commercial energy storage where a 48V system simply cannot carry the load. Available from 90V to 1000V DC and 5kWh to 120kWh, every unit is engineered around your inverter, motor controller or charger rather than pulled off a shelf.
High-voltage battery systems reduce current for the same power output, minimizing cable size, lowering heat generation, reducing copper losses, and improving overall inverter efficiency. This makes them the preferred choice for industrial equipment and applications requiring more than 20–30kW of continuous power.
Configure your pack and see the price
Because no two projects are alike, this product is priced by configuration. Set your voltage, capacity and options below for a live budgetary estimate, then send the spec straight to our engineering team.
Custom built to order
Build your high voltage pack
Enter your system voltage and the capacity you need in amp hours. We work out the energy in kWh, the pack architecture and a live budgetary estimate. Enclosure, cooling, discharge rate, BMS options and warranty are confirmed during engineering review.
Live pack architecture
Series configuration is calculated from your nominal voltage and cell chemistry.
Energy is nominal pack voltage multiplied by capacity.
Ideal Applications
- Commercial and industrial energy storage: for Mining, Telecom, Data Centers, Defence, Robotics and Agriculture.
- Traction and material handling: forklifts, cranes and plant equipment with motors above 30kW
- Solar plants: high voltage strings that avoid the current limits and cable cost of low voltage banks
Specifications
| Parameter | Specification |
|---|---|
| Nominal voltage range | 90V to 1000V DC |
| Capacity range | 5kWh to 120kWh per system |
| Cell chemistry | Grade A LiFePO4 (3.2V) or NMC (3.7V) |
| Cycle life | 6000+ cycles at 80% DoD (LiFePO4), 3000+ cycles (NMC) |
| Continuous discharge | 0.5C, 1C or 2C to order |
| BMS | Master slave architecture, cell level balancing, CAN 2.0 and RS485 |
| Protection | Over voltage, under voltage, over current, over temperature, short circuit, optional insulation monitoring and HVIL |
| Enclosure | Indoor rack cabinet IP20, outdoor cabinet IP54 or containerised |
| Cooling | Natural convection, forced air or liquid cooled |
| Isolation and switchgear | DC contactors, manual isolator, fuse and pre charge circuit |
| Connectors | Amphenol style HV power connectors, orange HV cabling to standard |
| Operating temperature | Charge 0°C to 50°C, discharge -20°C to 55°C |
| Communication | CAN and RS485, optional remote cloud monitoring |
| Warranty | 5 years |
| Build time | 3 to 8 weeks depending on capacity |
What is included
- Fully assembled and laser welded battery modules with Grade A matched cells
- Master slave BMS, wired, configured and tested for your inverter or controller
- Rack cabinet, busbars, HV cabling, isolator, fuse and contactor assembly
- Factory capacity test report and cell balance report for the delivered pack
- Commissioning support and inverter protocol matching
- Installation in Islamabad and Rawalpindi, nationwide on request
How a custom build runs
- Share your requirement. Send the configuration from the calculator along with your inverter or controller model and daily load.
- Engineering review. We confirm series count, current rating, BMS protocol and enclosure, then issue a firm quotation and drawing.
- Order confirmation. 50% advance releases cell procurement, balance is due before dispatch.
- Build and test. Modules are welded, assembled and capacity tested in our I-9 Islamabad facility.
- Delivery and commissioning. We install, pair the pack with your inverter and hand over the test report.
Common questions
Why is there no fixed price on this product?
A 5kWh 96V pack and a 120kWh 800V pack share almost nothing beyond the chemistry. Cell count, BMS boards, contactors, cabinet size and cabling all scale with your spec, so we price from a base rate of Rs 50 per watt hour and adjust for voltage class, duty cycle and options.
Is the calculator price final?
It is a budgetary estimate accurate enough to plan against. The firm quotation follows once our engineers check your charger, inverter and mounting constraints.
Will it work with my existing inverter?
In most cases yes. We match the BMS communication protocol to your inverter brand over CAN or RS485, and we build the pack to sit inside its voltage window. Send us the model number and we will confirm before you order.
Can I expand the system later?
Yes. Packs are built in modules, so additional capacity can be added in parallel clusters as long as the original design leaves headroom. Tell us your five year target and we will size the cabinet and BMS for it now.
Do you handle high voltage safety compliance?
Every pack ships with insulated HV busbars, orange coded cabling, a manual service disconnect and a pre charge circuit. Insulation monitoring and a high voltage interlock loop are available for vehicle and machinery builds where they are expected.
Looking for lower-voltage systems? Explore our Low-Voltage (12V-51.2V) Lithium BatteryPacks for homes and SMEs
